Shielded Cable

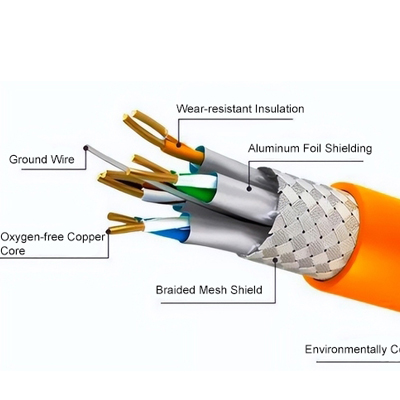

We offer a premier quality screened & shielded cables which finds extensive application in process control and instrumentation purposes. Our clients can avail the cables with solid / stranded / plain or tinned copper conductor with PVC / HR - PVC / P. E. Or zero halogen insulation. Furthermore, the flexible cables are armed with individual or overall shielding with aluminum Mylar tape / drain wire, inner & outer sheath of PVC / FR- PVC / zero halogen & FRLS PVC. GET A QUOTE

7/0060 Shielded Cables

Sl. No. Item Overall Dia (mm) ± 2%
01 S/Core 3.00
02 02/Core 3.80
03 03/Core 4.20
04 04/Core 4.90
05 05/Core 5.15
06 06/Core 6.10
07 07/Core 6.60
08 08/Core 7.10
09 09/Core 8.00
10 10/Core 8.30
11 12/Core 9.00
12 16/Core 9.60
13 18/Core 8.30
14 20/Core 9.00
15 26/Core 9.60

14/0060 Shielded Cable

Sl. No. S/Core Overall Dia (mm) ± 2%
01 02/Core 3.10
02 03/Core 4.20
03 04/Core 4.85
04 05/Core 5.20
05 06/Core 5.75
06 07/Core 6.40
07 08/Core 6.80
08 09/Core 7.20
09 10/Core 7.50
10 12/Core 7.90
11 16/Core 8.60
12 18/Core 9.00
13 20/Core 9.50
14 26/Core 10.40

0.50SQ.mm Shielded Cable

Sl. No. No. of Cores Overall Dia (mm) ± 2%
1 2/Core 5.50
2 3/Core 6.00
3 4/Core 6.50
4 6/Core 7.50
5 8/Core 8.50
6 10/Core 9.00
7 12/Core 10.00

1.00 SQ.mm Shielded Cable

Sl. No. No. of Cores Overall Dia (mm) ± 2%
1 1 6.60
2 2/Core 7.20
3 3/Core 8.00
4 4/Core 8.80
5 5/Core 9.50
6 6/Core 10.50
7 7/Core 11.20

0.75 SQ.mm Shielded Cable

Sl. No. No. of Cores Overall Dia (mm) ± 2%
1 2/Core 6.10
2 3/Core 6.50
3 4/Core 7.10
4 6/Core 8.00
5 8/Core 9.00
6 10/Core 9.70
7 12/Core 10.50

1.50 SQ.mm Shielded Cable

Sl. No. No. of Cores Overall Dia (mm) ± 2%
1 2/Core 7.00
2 3/Core 7.50
3 4/Core 8.40
4 6/Core 9.20
5 8/Core 10.00
6 10/Core 11.20
7 12/Core 11.80
